VFX Sheet Baker - Godot 4 Particles and Shaders to Sprite Sheet

Bake 2D effects into sprite sheets with real alpha, inside the Godot 4 editor

VFX Sheet Baker turns a particle, shader or animation scene into a sprite sheet PNG, a SpriteFrames resource and JSON metadata, from a dock in the editor.

Making a 2D game in Godot? The Godot 2D Bundle has 7 of our Godot 4 packs (2 starter templates, Stylized 2D VFX, Sprite Juice Kit, Screen Transitions, Scanline Stack, VFX Sheet Baker) for $14.99 instead of $41.45 bought one by one, until November 9.

Try before you buy: download the free Lite version (up to 16 frames, PNG sheet).

What it does

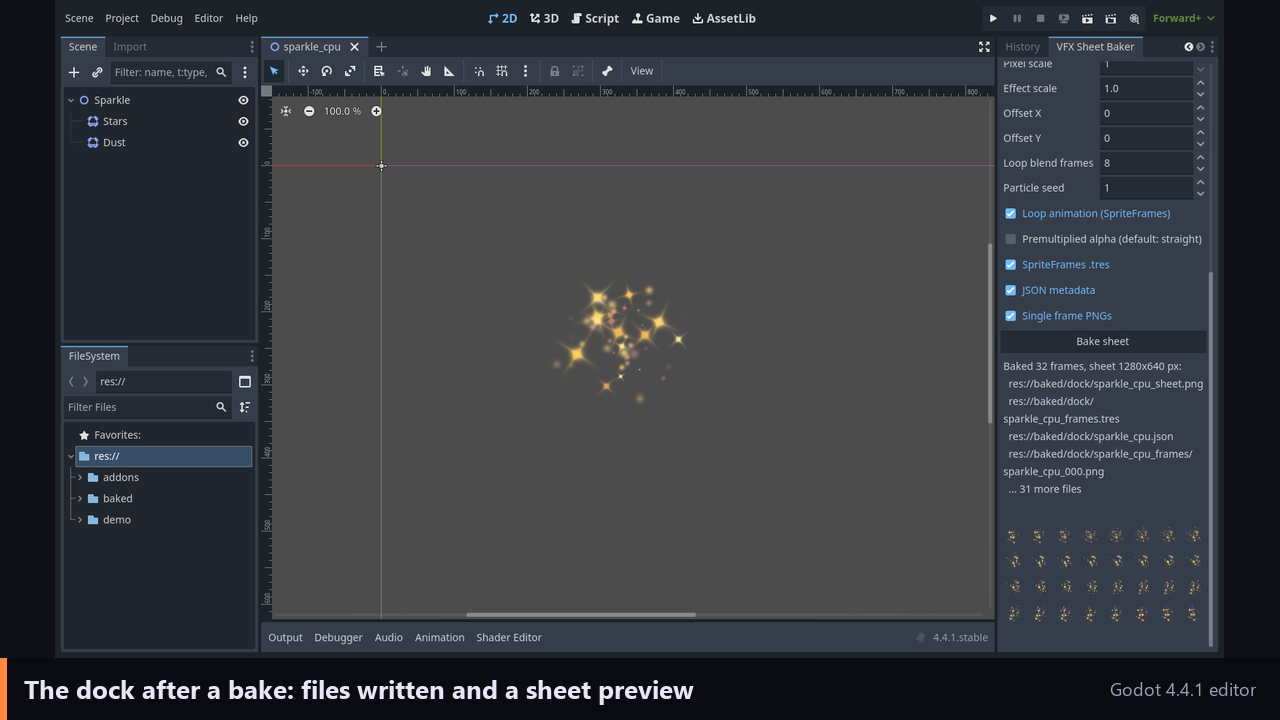

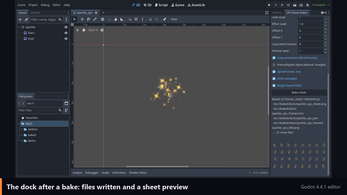

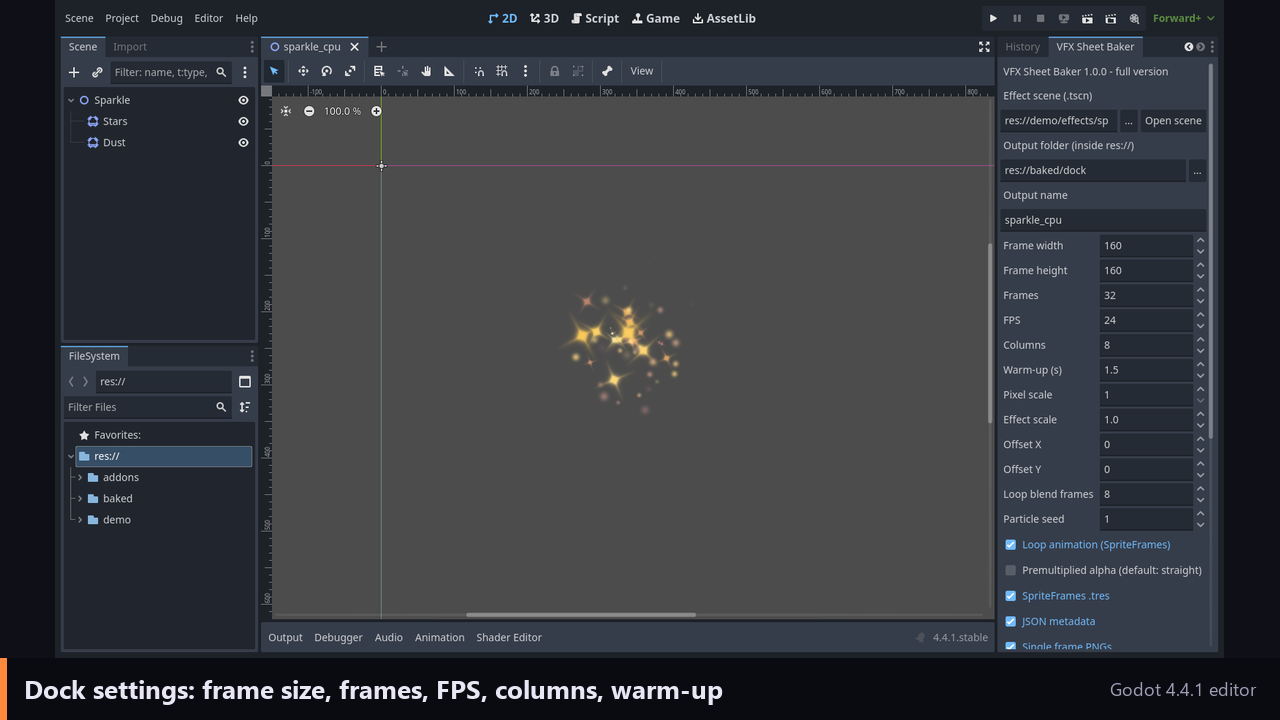

• A dock in the Godot editor: pick a 2D effect scene, set frame size, frames, FPS, columns, warm-up, press Bake sheet.
• Works with GPUParticles2D, CPUParticles2D, AnimatedSprite2D, AnimationPlayer (autoplay) and shaders that use TIME.

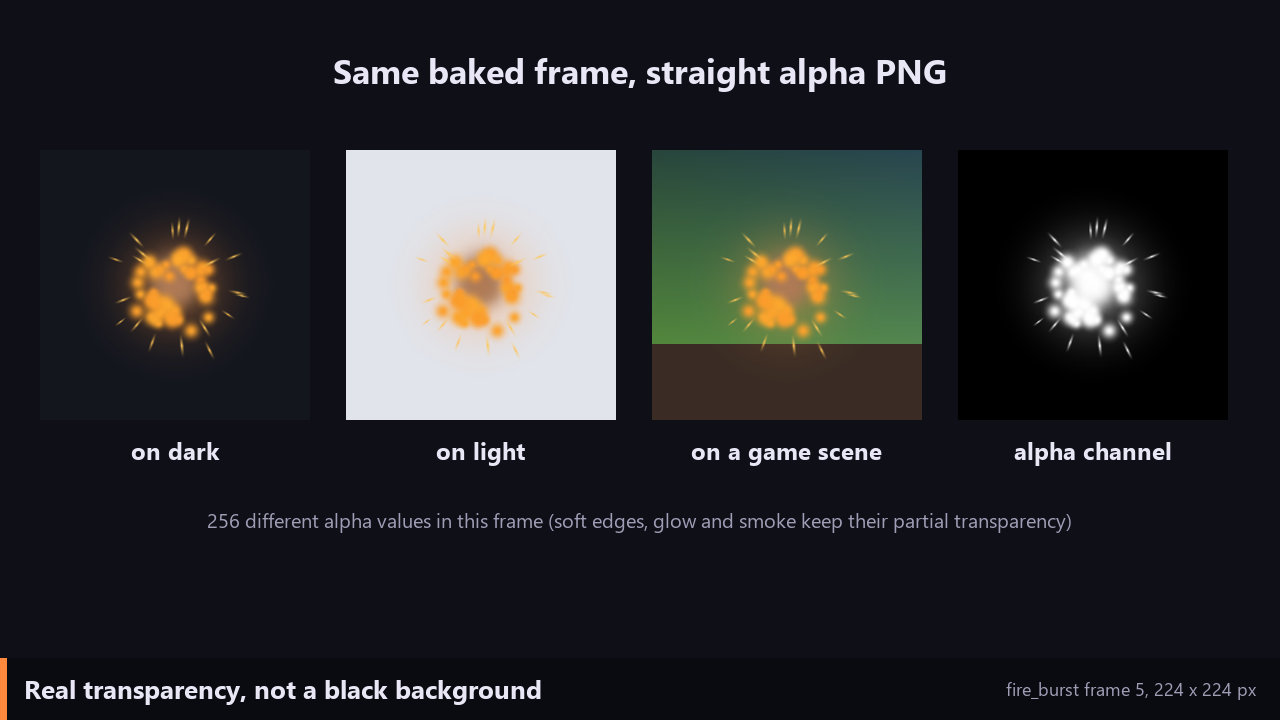

• Real transparency: frames are read from a transparent viewport; straight alpha PNG by default, premultiplied as an option.

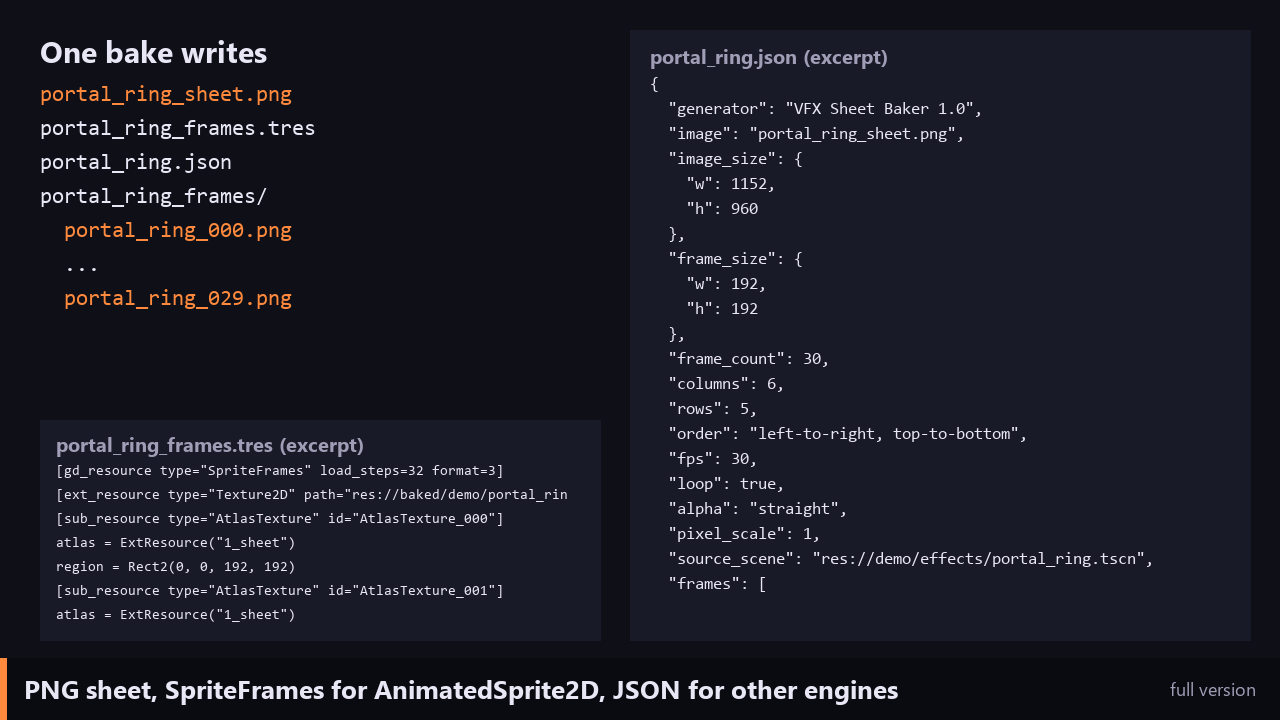

• Outputs: PNG sheet, SpriteFrames .tres ready for AnimatedSprite2D, JSON metadata (frame rects, fps) for other engines, optional single frame PNGs. Up to 512 frames.
• Repeatable: the bake runs with a fixed time step and fixed particle seeds, so the same settings give the same bytes (tested twice per demo effect on Godot 4.4.1).

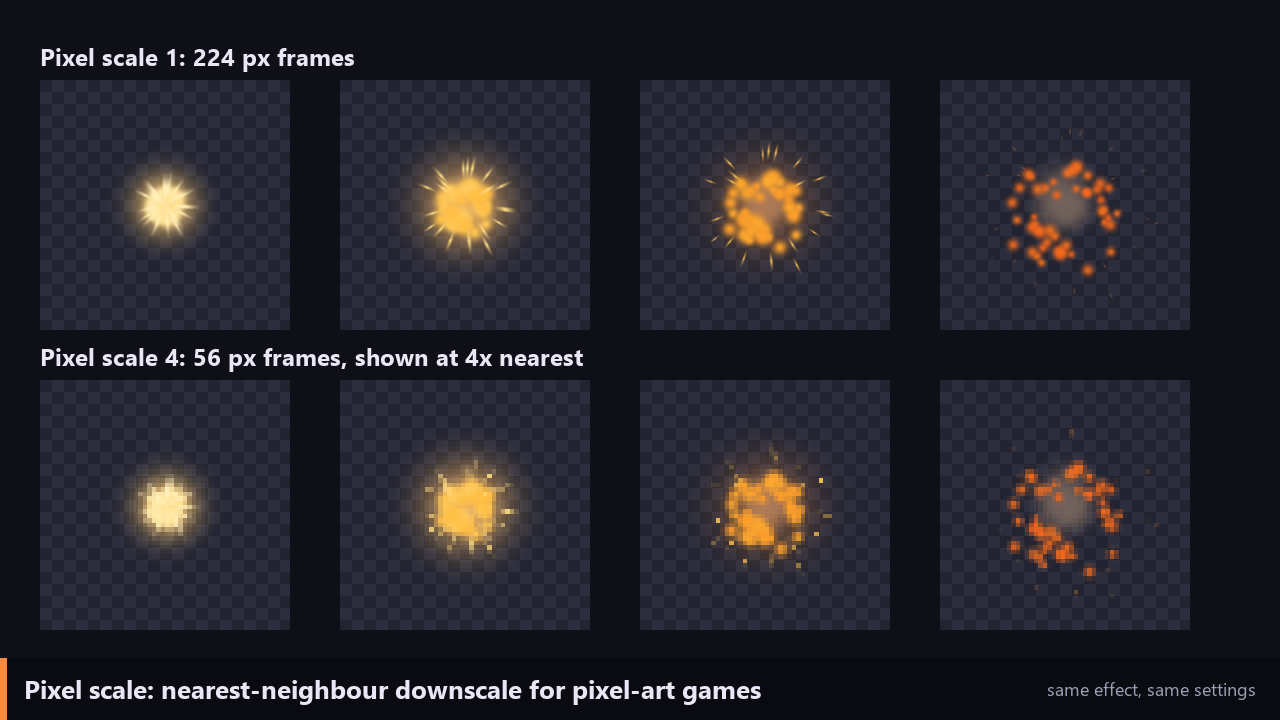

• Pixel scale: nearest-neighbour downscale for a pixel-art look. Loop blend: cross-fades extra frames into the start for seamless loops.
• Clear messages: missing scene, nothing visible, effect cut off by the frame border, bake process failed.
• Command-line entry for build scripts (same code path as the dock).

What is inside

• The addon (addons/vfx_sheet_baker) with the dock, the bake runner and the command-line entry.

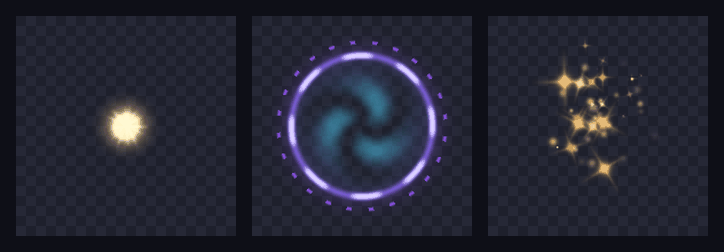

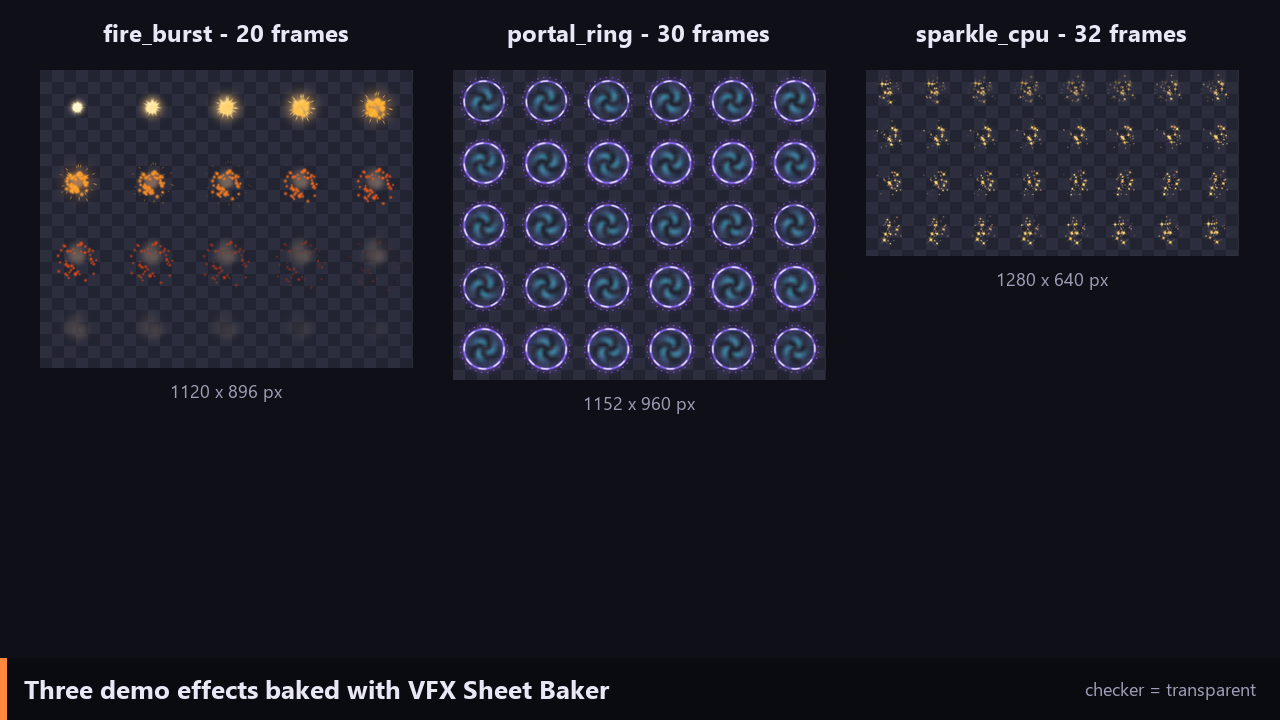

• A demo project with 3 effect scenes made by our own code: a GPUParticles2D fire burst with an AnimationPlayer flash, a shader portal ring using TIME, a CPUParticles2D sparkle.
• README.txt (settings, messages, use in Unity / GameMaker) and LICENSE.txt.

Requirements

• Godot 4.4 or newer, tested on Godot 4.4.1 (Windows 10, Forward+ and Compatibility). 2D effects only.
• A small bake window opens for a few seconds while the frames render.

License

Use the addon in any of your projects. The sheets you bake are yours to use in any game or app, commercial or not; no credit required. Do not resell or redistribute the addon itself.

Not sure yet? Get the free Lite version and bake your own effects first.
